品牌：SunKun(三昆)

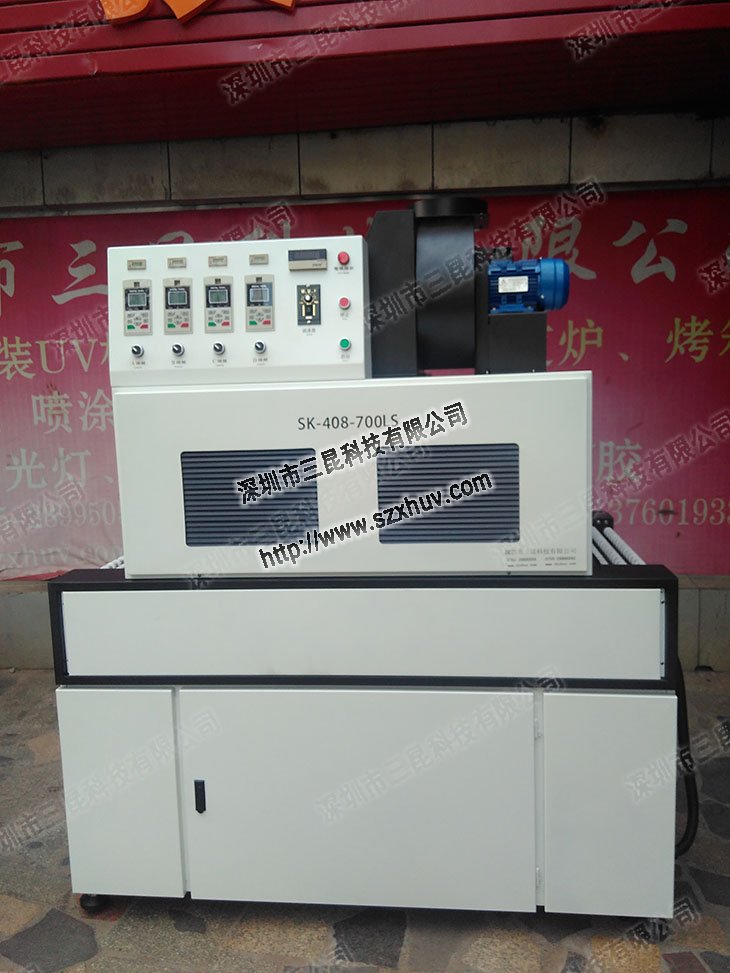

型號：SK-408-700LS

訂購：不限數量

價格：面議

⒈訂購熱線：13823369867(李先生) 1753480168

⒉業務咨詢：13913507139(黃永貴) 2851085006



⒈市場部：13510246266(黃總經理) 289604232

1、UV燈功率:6.0kw*2支、8kw*2支(鹵素燈)
2、UV燈總長:800mm、弧長:700mm
3、UV波段主波峰:365nm、380nm
4、UV燈累時器配置
5、強弱光強調節:20%~100%(采用電子電源無級調節)
6、鈑金燈箱安裝進口插片反射器
7、采用上、下排風系統
8、輸送材料:聚四氟和不銹鋼滾輪
9、輸送寬度:700mm
10、輸送速度:0~5m/min
11、入口高度:50mm
12、電源:380VAC 50HZ

1, UV lamp power: 6.0kw * 2, 8kw * 2 (halogen)
2, the total length of the UV lamp: 800mm, arc length: 700mm
3, UV band main peak: 365nm, 380nm
4, UV light timer configuration
5, strong and weak light intensity adjustment: 20% ~ 100% (using electronic power supply stepless adjustment)
6, sheet metal light box installation of imported insert reflector
7, using the upper and lower exhaust system
8, conveying materials: polytetrafluoroethylene and stainless steel rollers
9, conveying width: 700mm
10, conveying speed: 0~5m/min
11, the entrance height: 50mm
12, power: 380VAC 50HZ

1、主要適用于VU噴涂、五金、絲印、玻璃、塑膠、表面上光處理、uv油墨、涂料實驗等。UV能量高,涂膜穿透能力強;

本機特點：
1、聚光型設計,高聚光反光燈罩,瞬時干燥,速度特快;
2、燈箱內設計的通風系統;
3、各燈皆可調節上下;
4、輸送帶調速,輸送速度平穩可調;
5、傳動網帶調整裝置,以免跑偏;
6、燈管異常保護裝置。

The main purpose:
1, mainly for VU spraying, hardware, silk screen, glass, plastic, surface glazing, uv ink, coating experiments. High UV energy and strong penetrating ability of coating film;

This machine features:
1. Concentrating design, high concentration reflector, instant drying, fast speed;
2. The ventilation system designed in the light box;
3, each lamp can be adjusted up and down;
4. Conveyor belt speed regulation, conveying speed is stable and adjustable;
5, the transmission network with adjustment device to avoid deviation;
6. Lamp abnormal protection device.
